Bynder/WebDAM UI component

Bynder/WebDAM UI components to support frontend developers on building their web applications.

Universal Compact View

See the Universal Compact View in action

The Universal Compact View is the easiest way to get assets from the DAM into your web application. It's a component built with Typescript that allows developers to add support for selecting and importing assets from the DAM without having to worry about the intricacies related to building a file picker: UI design, authentication, API requests, etc. This component fetches the assets and their metadata through the API's and renders it by replicating the Bynder look & feel. Users can query, filter (by smartfilters, metaproperties, tags, keyword, and existing collections), sort, and select assets to then import them into another application.

Universal Compact View works with all methods of authentication that your Bynder and WebDAM portal supports.

Universal Compact View on Bynder Knowledge Base

Demo

For a demo of the Universal Compact View latest version and its configuration options check out our demo page at https://bynder.github.io/bynder-compactview/.

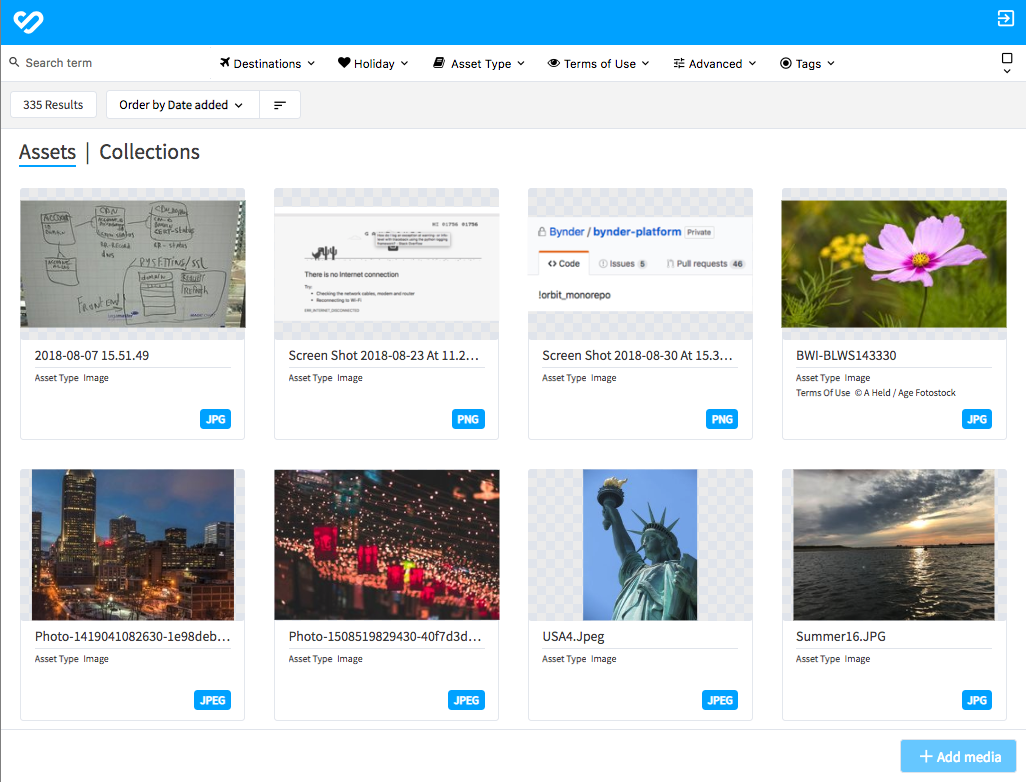

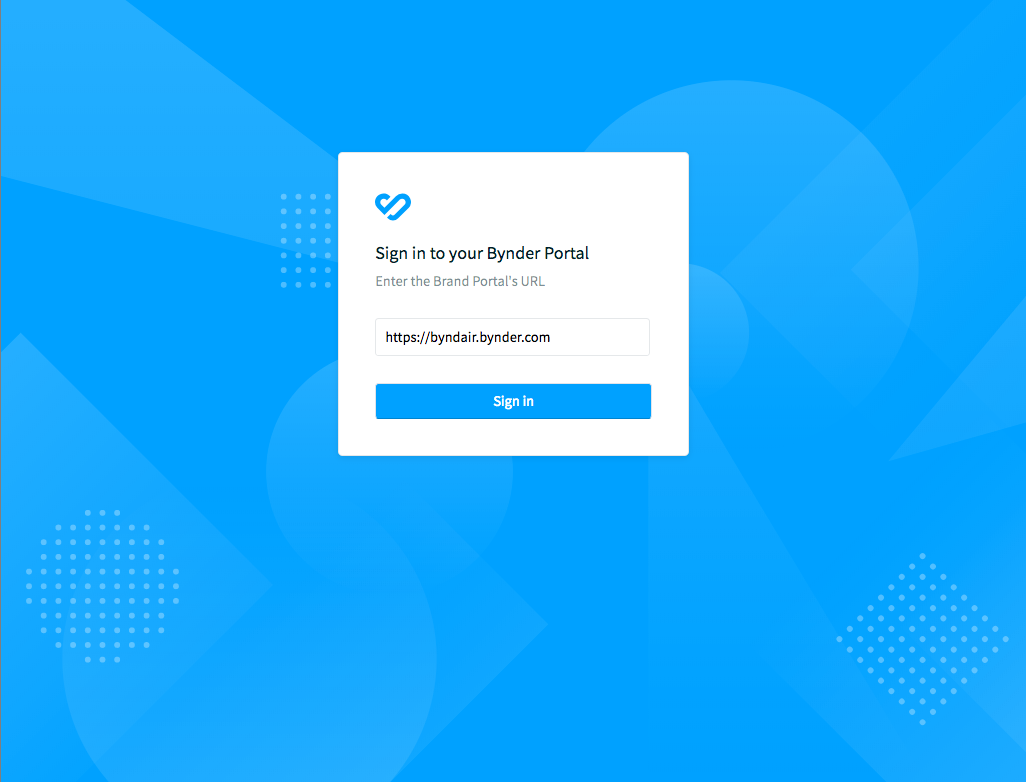

Screenshots

Example usage

Once the assets are selected, they are submitted by the Universal Compact View using CustomEvents. They will be returned in an array of objects that can be handled in your page. In the example above we use a div with id importedAssets that will be filled with the assets urls. This response array contains all of the information about the assets from the Bynder portal, including all public derivatives.

List of available asset derivatives can be retrieved by the API call: https://bynder.docs.apiary.io/#reference/account/derivative-operations/retrieve-derivatives.

How it works

We have two available methods available for implementing the UCV. Either the Cloudfront distribution URL can be used or you can download the NPM package.

To setup the Universal Compact View in your web app via the Cloudfront distribution, add the following line to your page:


<script src="https://ucv.bynder.com/5.0.5/modules/compactview/bynder-compactview-3-latest.js"></script>

If you prefer the NPM package, you download it here.

After it you can trigger/configure the Compact View through its new API:

BynderCompactView.Open({ onSuccess: function (assets) { /* Do something with given asset array */}, portal: { url: "example.getbynder.com" }, /* ... other options ... */ })

The optional options object accepts the following attributes (which are also all optional):

Attribute	Description	Possible Values	Default Value
onSuccess	Comma separated list of asset types to display	`function (assets: array(asset), additionalInfo?: AdditionalInfo): void`	`console.log`
container	A DOM element to act as the container for Compact View (disables modal)	A `Dom.HTMLElement` instance	None
portal	Portal config object	`{url: string, editable: bool}`	None
portal.url	Set a default portal URL for the Compact View login screen (set on the Login component if using the npm package package)	A string containing Bynder portal URL	None
portal.editable	If `false`, limits Compact View tot a single portal	`true` , `false`	`true`
defaultSearchTerm	Set the initial value for search term	`"Keyword"`	None
language	Set language for the Compact View	`"en_US"`, `"nl_NL"`, `"de_DE"`, `"fr_FR"`, `"es_ES"`	`"en_US"`
mode	Set the Compact View to allow multiple or single asset selection	`"MultiSelect"`, `"SingleSelect"`, `"SingleSelectFile"`	`"SingleSelect"`
theme	A `theme` object for customizing Compact View look and feel	`Theme`	None
assetTypes	An array of strings for limiting allowed asset types	`AssetType[]`	`['AUDIO', 'DOCUMENT', 'IMAGE', 'VIDEO']`
assetFieldSelection	A multiline string containing desired asset fields (see below)	String	All fields
hideExternalAccess	If true, removes access to external DAM from assets and collections	`true`, `false`	`false`
selectedAssets	An array of asset ids. When mode is different than MultiSelect, the last id in the array will be selected	`["id1", "id2", "id3"]`	`[]`
assetFilter	Predefined filters for UCV	`AssetFilterJson`	None
authentication	Authentication config object. (set on the Login component if using the npm package package)	`{ getAccessToken: () => '', hideLogout: false }`	None
authentication.getAccessToken	Function to provide an OAuth `access_token` and bypass the authentication flow.	`() => ''`	None
authentication.hideLogout	If true, logout button will not be displayed. This property can only be used in combination with `authentication.getAccessToken`.	`true`, `false`	`false`
hideLimitedUse	If true, limited assets will be hidden for all users.	`true`, `false`	`false`
modalStyles	An object with css properties for modal window wrapper.	`{"width": "100%"}`	None
onLogout	Callback, will be fired after logout.	`() => void`	None
hideSwitch	Property to hide switch between Assets and Collections	`true, false`	`false`
noCache	Property to disable frontend cache inside UCV	`true, false`	`false`
selectAllOption	Allow to select all assets if MultiSelect mode enabled	`true, false`	`false`

Possible values for mode:

MultiSelect: Users can select multiple assets

SingleSelect: Users can only select a single asset. In this case, onSuccess callback will receive an array with a single element containing the selected asset.

SingleSelectFile: In addition to SingleSelect behaviour, users will be prompted to select an asset derivative. This derivative can be a built-in derivative, a custom derivative (if available publicly) or the original file (if available publicly). Selected file information will be then passed in an object as the second argument of onSuccess callback under selectedFile key.

In all three modes, all publicly available files of selected assets are available under asset.files structure.

When the Dynamic Asset Transformations (DAT) feature is enabled, the asset.files structure will also contain a transformBaseUrl field. This base URL can be used to generate derivatives on the fly, by specifying various kinds of image transformation parameters. More information about this feature can be found in our Knowledge Base item about DAT.


type AdditionalInfo = { selectedFile?: File }

type File = { url: string; width?: number; height?: number; fileSize?: number; }

type AssetFilterJson = {
   assetType_in?: AssetType[]; //predefined asset types
   collectionId?: string; //predefined collection id
   metapropertyOptionId_in?: string[]; //predefined metaproperty IDs
   searchTerm?: string; //predefined search term
   tagNames_in?: string[]; //predefined tags
   isLimitedUse?: boolean; //whether or not this asset is marked as Limited Use
   showToolbar?: boolean; //show toolbar for predefined filters (false by default)
}

type AssetType = 'AUDIO' | 'DOCUMENT' | 'IMAGE' | 'VIDEO'

type Theme = {
   colorPrimary?: CSSColor;
   colorButtonPrimary?: CSSColor;
   colorButtonPrimaryLabel?: CSSColor;
   colorButtonPrimaryActive?: CSSColor;
   colorButtonPrimaryHover?: CSSColor;
   colorButtonPrimaryHoverLabel?: CSSColor;
};

Example assetFieldSelection values:


databaseId
name
files
url
tags
textMetaproperties {
  name
  value
}
metaproperties {
  nodes {
    name
    options {
      name
      displayLabel
    }
  }
}

# For legacy browsers


"databaseId \
name \
files \
url \
tags \
..."

Fields accepted by assetFieldSelection:


interface Asset {

    # Asset ID.
    id:  ID!

    # Asset database Id.
    databaseId:  String!

    # Asset name.
    name:  String!

    # Asset description.
    description:  String

    # Asset type. Possible values are: IMAGE, DOCUMENT, AUDIO and VIDEO.
    type:  AssetType!

    # The HTTP URL for this payload.asset.
    url:  URI!

    # Date created.
    createdAt:  DateTime!

    # User who created the payload.asset.
    createdBy:  User

    # Date published.
    publishedAt:  DateTime

    # Date updated.
    updatedAt:  DateTime

    # Size of the asset file in bytes.
    fileSize:  Int!

    # Height of the original asset file.
    height:  Int!

    # Width of the original asset file.
    width:  Int!

    # Asset orientation. Possible values are: PORTRAIT, LANDSCAPE, SQUARE.
    orientation:  Orientation!

    # Whether or not this asset is archived.
    #
    # Knowledge base entry
    isArchived:  Boolean!

    # Brand ID.
    brandId:  String

    # Files associated with the payload.asset.
    files:  JSONObject!

    # Copyright of the payload.asset.
    copyright:  String

    # Extensions of the asset file. This can have more than one value in case of a
    # derivative with different extensions.
    extensions: [String!]!

    # Whether or not this asset is marked as Limited Use.
    #
    # Knowledge base entry
    isLimitedUse:  Boolean!

    # Whether or not this asset is marked as Public.
    #
    # Knowledge base entry
    isPublic:  Boolean!

    # Whether or not this asset has a watermark.
    #
    # Knowledge base entry
    isWatermarked:  Boolean!

    # Tags of the payload.asset.
    #
    # Knowledge base entry
    tags: [String!]!

    # Asset original URL.
    originalUrl:  URI

    # Metaproperties of the asset
    #
    # Knowledge base entry
    metaproperties:  MetapropertyConnection!

    # Metaproperties of the asset with type `text` and `longtext`
    #
    # Knowledge base entry
    textMetaproperties: [TextMetaproperty!]!
}


type TextMetaproperty {
    name:  String!
    value:  String!
}


type MetapropertyConnection {
    nodes: [Metaproperty!]!
}


type Metaproperty {
    id:  ID!
    name:  String!

    # Arguments
    # language: Preferred language for this label
    label(language:  String):  String!

    type:  String!

    zIndex:  Int!

    options: [ MetapropertyOption!]!

    isApiField:  Boolean!

    isEditable:  Boolean!

    isFilterable:  Boolean!

    isMainfilter:  Boolean!

    isMultifilter:  Boolean!

    isMultiselect:  Boolean!

    isRequired:  Boolean!

    isSearchable:  Boolean!
}


type MetapropertyOption {

    id:  ID!

    name:  String!

    assetCount:  Int!

    # Arguments
    # language: Preferred language for this label
    label(language:  String):  String!

    displayLabel:  String!

    imageUrl:  URI

    zIndex:  Int!

    isActive:  Boolean!

    isHiddenByDefault:  Boolean!

    isSelectable:  Boolean!
}

Limitations

Please note 3D type assets are also not yet supported in the Universal Compact View.

Container mode

UCV can not set up its height when the container has max-height CSS property. You should use height property.

Migration from 1.x.x

From Universal Compact View 2 and onwards a JavaScript API allowing programmatic control of the component lifetime is used. The most notable change when migrating is the switch away from configuration using HTML data attributes.

Here's a diff demonstrating migration from our old example code to the new API:

Migration from 2.x.x

The only breaking change lies in the npm package, and only within the @bynder/compact-view/components part of the package. If using the Cloudfront url it is safe to skip this part.

As we introduced the Bynder design system in UCV, some of the components exposed in @bynder/compact-view/components
have been replaced with the design system variant as well. Action needs to be taken if you are using the Checkbox, Button and/or Card* component(s).

Here's a diff demonstrating the changes that should be made:

Card component:

Button component:

Checkbox component:

Version history

Source: https://ucv.bynder.com/5.0.5/modules/compactview/bynder-compactview-3-latest.js

4.3.0

Added optional prop selectAllOption for selecting all assets if MultiSelect mode enabled

4.2.3

Added optional prop hideSwitch for disabling frontend cache

4.2.2

Date metaproperties are shown in UTC format

4.2.1

Metaproperties are now sorted on the Asset card based on the sortOrder chosen within the DAM

4.2.0

Added optional prop hideSwitch for hiding switch between Assets and Collections

4.1.0

Added Toolbar for single Collection view.

4.0.1

Performance improvements and fixes.

4.0.0

React version is upgraded to React 18
Displayed on Asset Card metaproperty value is limited to 100 chars. The full metaproperty value is shown on hover.

3.4.1

Performance improvements and fixes.

3.4.0

DAT-UI updated to the latest version. Added new transformations
Added a property for option assetFilter showToolbar. If passed true - Toolbar is shown when asset filters are predefined
Added extensions for selected files in MultiSelect mode
Additional info for the selected file will be shown for multiple onSuccess callback calls in container mode
Resolved conflict between UCV's Sentry and parents's app Sentry

3.3.4

Fixed formatting for TextMetaproperties

3.3.3

TextMetaproperties are now shown on the asset card
Fixed breaking error when global variable process does not have env property

3.3.2

Added optional prop onLogout for passing callback, which will be called after logout

3.3.1

Performance improvements and fixes.

3.3.0

Added option for custom styling modal window modalStyles
Fixed width in container mode
Improvements for example app

3.2.4

Added additional filters for example applications
Performance improvements and fixes.

3.2.3

Added extensions param to default getAssets query
Remove tooltips on title at hover
Added expanding hover to long asset name
Fixed login window position in container view option
Prevent flickering at first loading in Firefox
Added the DAT-UI for WebDAM

3.2.2

Fixed an issue with the scrollbar.

3.2.1

Fixed an issue with the filters where these could end up outside of the container.

3.2.0

The DAT-UI is now available within the UCV. (Available when DAT has been purchased on the account and when the SingleSelectFile mode is enabled in the UCV)
Performance improvements and fixes.

3.1.3

Performance improvements and fixes.

3.1.2

Performance improvements and fixes.

3.1.1

New features:

Webdam filter support (Search Facets).
Webdam XMP Metadata marked as required is now shown on the Asset Card.
Performance improvements and fixes.

3.1.0

New features:

Limited assets are now displayed in UCV.
Option to hide limited assets for all users is added.
Performance improvements and fixes.

3.0.0

New features:

Access token can now be provided via configuration
If possible, components are replaced with Bynder design system version for a more consistent user experience
General performance improvements and fixes.

2.6.1

New features:

selectedAssets are now returned in the same order as they are listed in the configuration.
Accessibility is improved by enabling keyboard users to select assets.

2.6.0

New features:

Metaproperties with the showInListView or showInGridView option enabled will now also be displayed in the asset overview of Universal Compact View.

2.5.0

New features:

Compact View can now connect and load to WebDAM portals and assets. There for is now referred as Universal Compact View.
General performance improvements and fixes.

2.4.3

New Features:

General performance improvements and fixes.

2.4.2

New Features:

General performance improvements and fixes.

2.4.1

New Features:

Support for digital asset transformation (DAT).
General performance improvements and fixes.

2.4.0

New Features:

Assets can be preselected when opening Compact View.
Several security updates.
General performance improvements and fixes.

2.3.0

New Features:

General performance improvements and fixes.

2.2.1

New Features:

General performance improvements and fixes.

2.1.0

New Features:

New OAuth 2 support.
Display watermarked status for assets.
Derivative selection is now available.
New read-only portal configuration.
Asset status (archived, watermarked, etc.) improvements.
General performance improvements and fixes.

2.0.0

New Features:

General performance improvements and fixes.
New login page implemented.
New Compact View API.

1.5.0

New Features:

New attribute data-shadowDom for toggling the usage of shadow DOM
New attribute data-modal for displaying the Compact View in a modal rather than in the parent element

1.4.0

New Features:

Added close button when autoload is not enabled
Improved authorisation error handling
Improved performance for large asset banks
Decreased bundle size by ~200kB - the most compact version yet!

1.3.0

New Features:

New attribute data-searchTerm for setting the initial search value

1.2.0

New Features:

New look and feel to more closely match Flagship experience
Added document and audio support (now supports all asset types!)
Added Smart Filter support
Added Advanced Filter
Added ability to open asset detail screen in new tab
Front end written completely in ReasonML
Back end written completely in OCaml

1.1.0

New Features:

Added video support
Added support for Safari and IE11
Configurable as multi select or single select

Version release Atom feed

You can use the Atom feed to be notified when new versions of the Universal Compact View are released. For example you can use the feed in Slack with the RSS app or install an RSS Feed Reader extension in your browser.

Atom v1.0
